Product Description

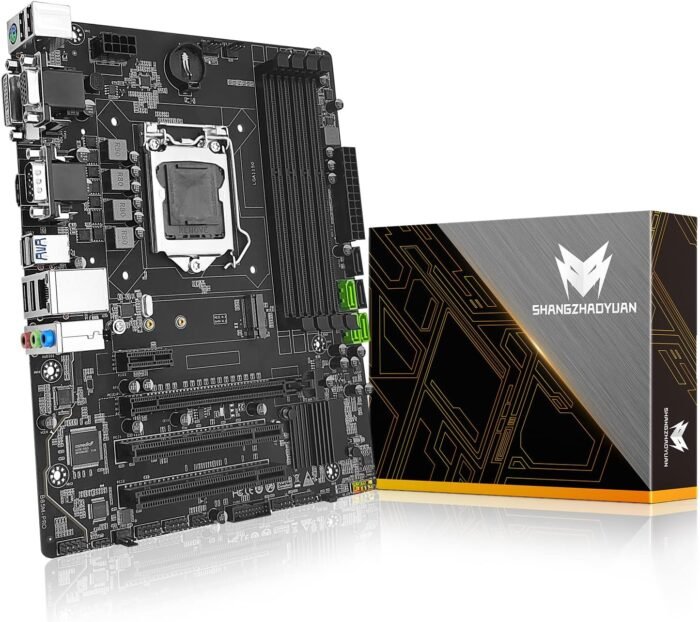

SHANGZHAOYUAN B85M PRO Gaming Motherboard with high compatibility brings higher gaming and office experience.
Every motherboard has undergone rigorous testing, rejecting defective and used products.
Note: The user manual is not included in the package, if you need it, please download it from the product description page or let us help you get it.

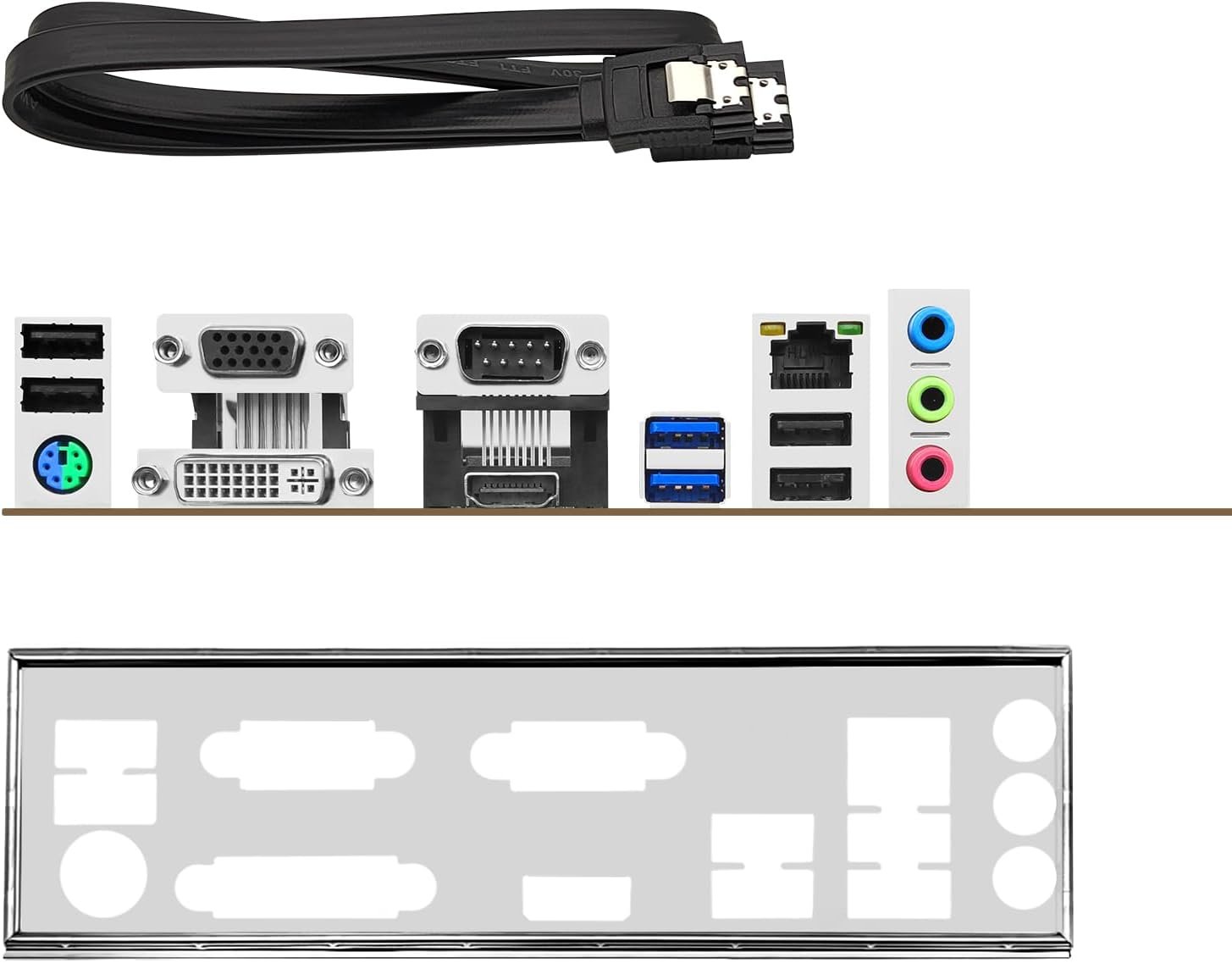

Rear I/O Panel:
1 * VGA; 1 * DVI
1 * HDMI-compatible
1 * Gabigat LAN
2 * USB 3.0; 4 * USB2.0
1 * PS/2
Audio(Line-in, Line-out, MIC)
What’s in the Box? 1 * Motherboard 1 * I/O Blocking 1 * SATA Cable
The B85M PRO Gaming Motherboard is committed to creating the ultimate smooth computer experience!
—>With exquisite quality and craftsmanship, meet your office, entertainment, and gaming needs.

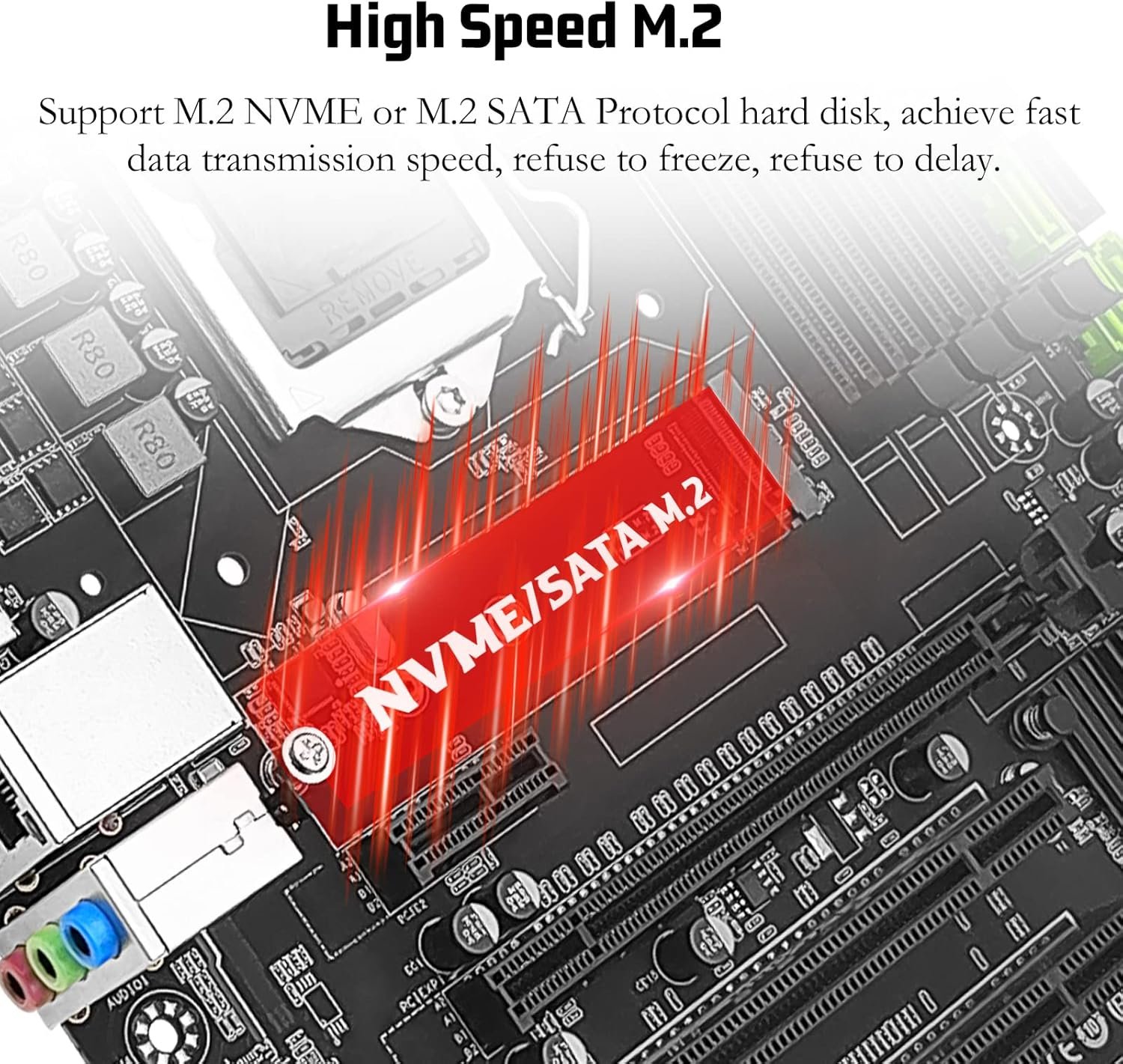

Gigabit network card, transmission speed is up to 1000Mbit/s. All solid capacitors, fine workmanship, and professional stability. Support M.2 NVME or M.2 SATA Protocol hard disk, to achieve faster data transfer speeds. Equipped with B85 chipset, 8-layer PCB material, faster transmission efficiency, and longer service life. The new aesthetic design, rapid heat dissipation, and stable work under high load. Optimized circuit layout and fully separated memory circuit design ensure strong stability.

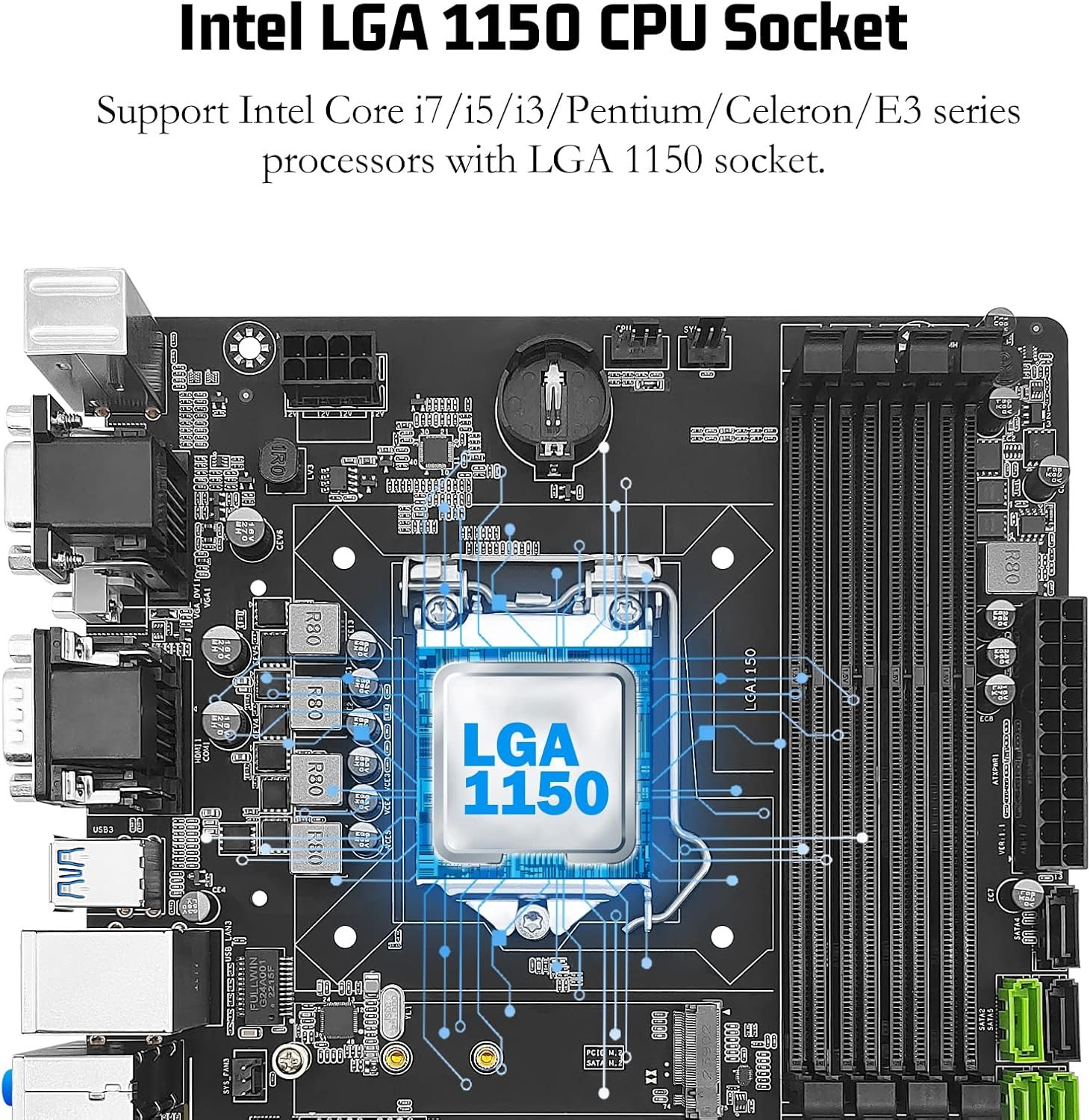

LGA 1150 Scoket
Supports Intel Core i3 i5 i7/Pentium/Celeron/E3 series processors with LGA 1150 socket.
Three Display Interfaces
Equipped with VGA, DVI and HDMI-compatible interfaces. Max support three displays, meet daily office needs.

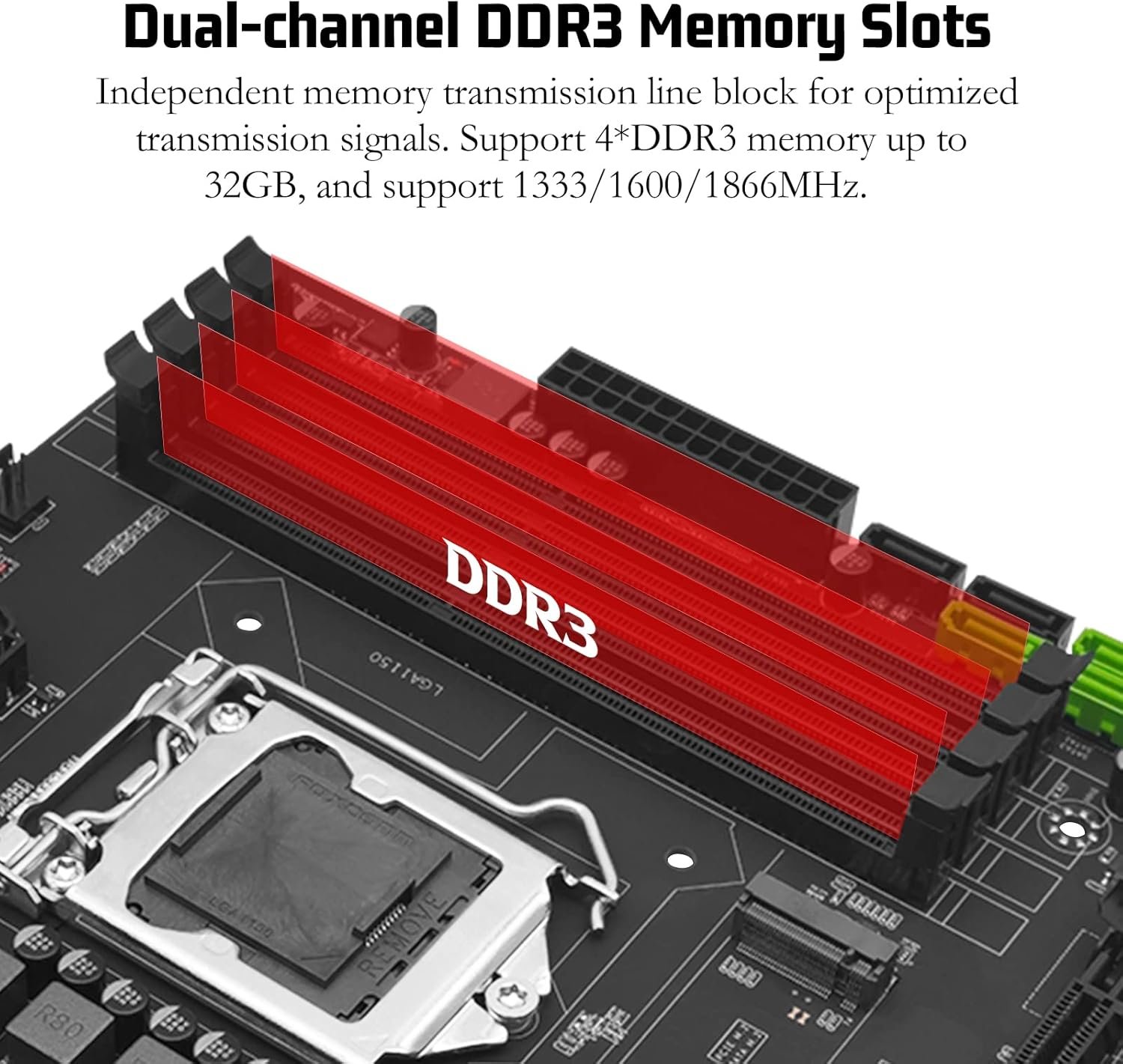

DDR3 Memory Slots
Supports dual-channel DDR3 memory up to 32GB(8GB*4), 1333/1600/1866MHz effective frequency.
Strong Heat Dissipation
Metal Aluminum Material provides effective heat dissipation, to provide effective heat dissipation for the chipset.

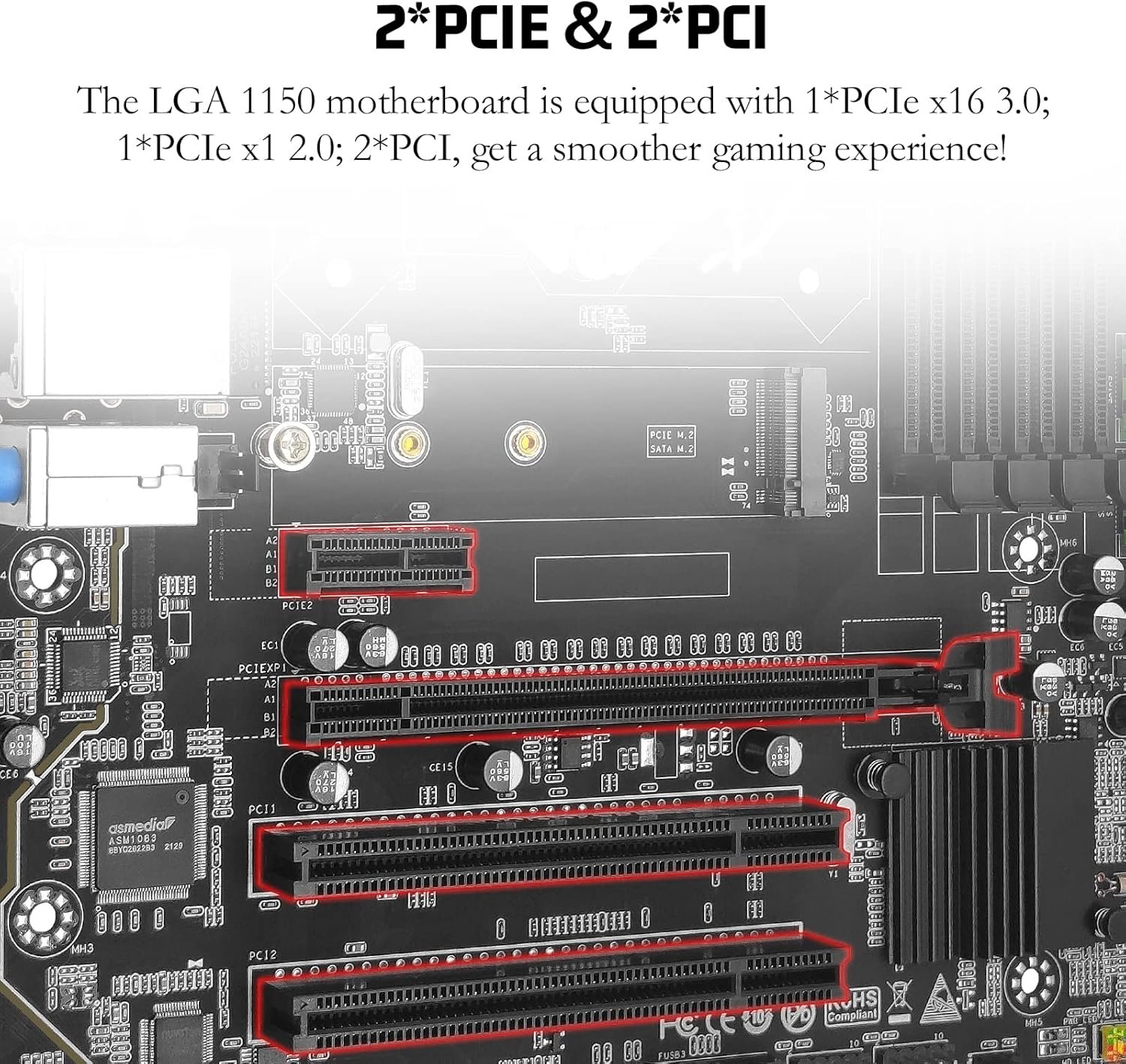

PCIE & PCI SLOTS
Equipped with 1*PCIe x16 3.0, 1*PCIe x1 3.0, 2*PCI, to achieve higher compatibility.
SATA Interfaces
With SATA 3.0, the hard drive reads and writes faster, maximum transfer speeds up to 6Gbp/s.

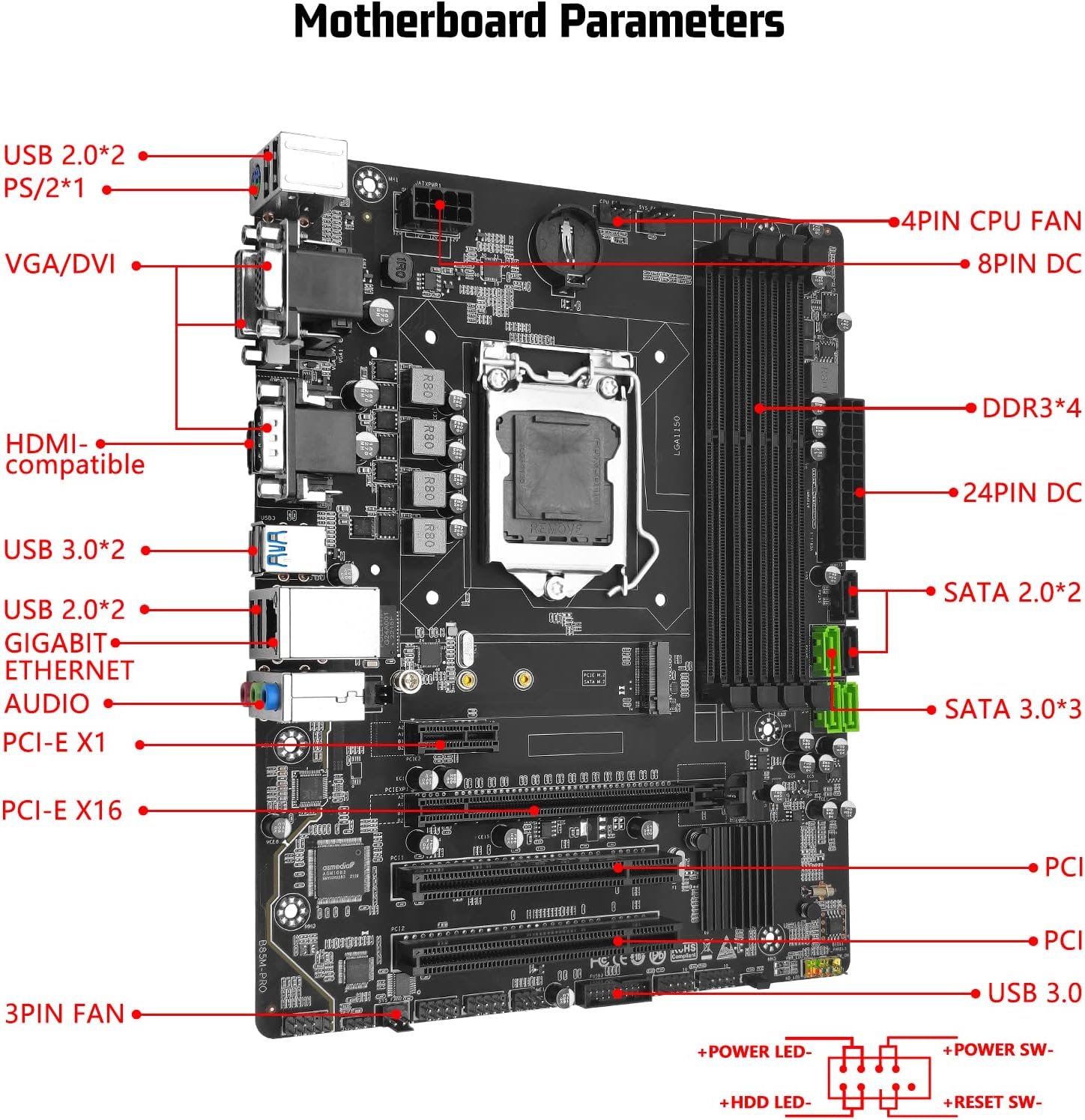

B85M PRO LGA 1150 Motherboard Specifications
Main Chipset Intel B85 Structure Micro ATX CPU Socket LGA 1150 Memory Slot 4*DDR3 Maximum Memory 32GB(8GB*4) PCI-E Slot 1*PCI-E X16(PCI-E 3.0); 1*PCI-E X1 PCI Slot 2*PCI Onboard Network Card Gigabit Ethernet Interface Storage Interface 3*SATA 3.0; 2*SATA 2.0; M.2 NVME USB Interface 3*USB 3.0; 4*USB 2.0 Video Interface HDMI-compatible; VGA; DVI Integrated Video Card YES(Requires CPU to support integrated display) Power Supply 4-phase Power Supply Power Connector 24PIN+8PIN FAN Interface 1*4PIN; 1*3PIN Motherboard Size 244mm*195mm
LGA 1150 Motherboard: The gaming motherboard supports Intel 4th gen processor (Core i7/i5/i3/Pentium/Celeron/E3 series) with LGA 1150 CPU socket, e.g. i5 4570, i5 4690k, i7 4790, i7 4790k, etc.
Dual-channel DDR3: The Intel LGA1150 motherboard supports dual-channel DDR3 memory, 1333/1600/1866MHz frequency type, the maximum memory capacity is 32GB (4*8GB)
High-speed Interface: The computer motherboard for Intel i3 i5 i7 supports M.2 protocol, NVME and SATA mode automatic switching. And it is equipped with 1 PCIe x16 3.0, 1 PCIe x1 2.0, 2 PCI, 3 SATA 3.0, and VGA, DVI, HDMI-compatible high-definition multimedia transmission interface
Ultimate Network Speed: The lga 1150 DDR3 motherboard with RJ45 gigabit network interface, RTL8111K network card chip, the maximum network transmission rate can reach 1000bps/s, bringing an extremely fast and smooth online gaming network

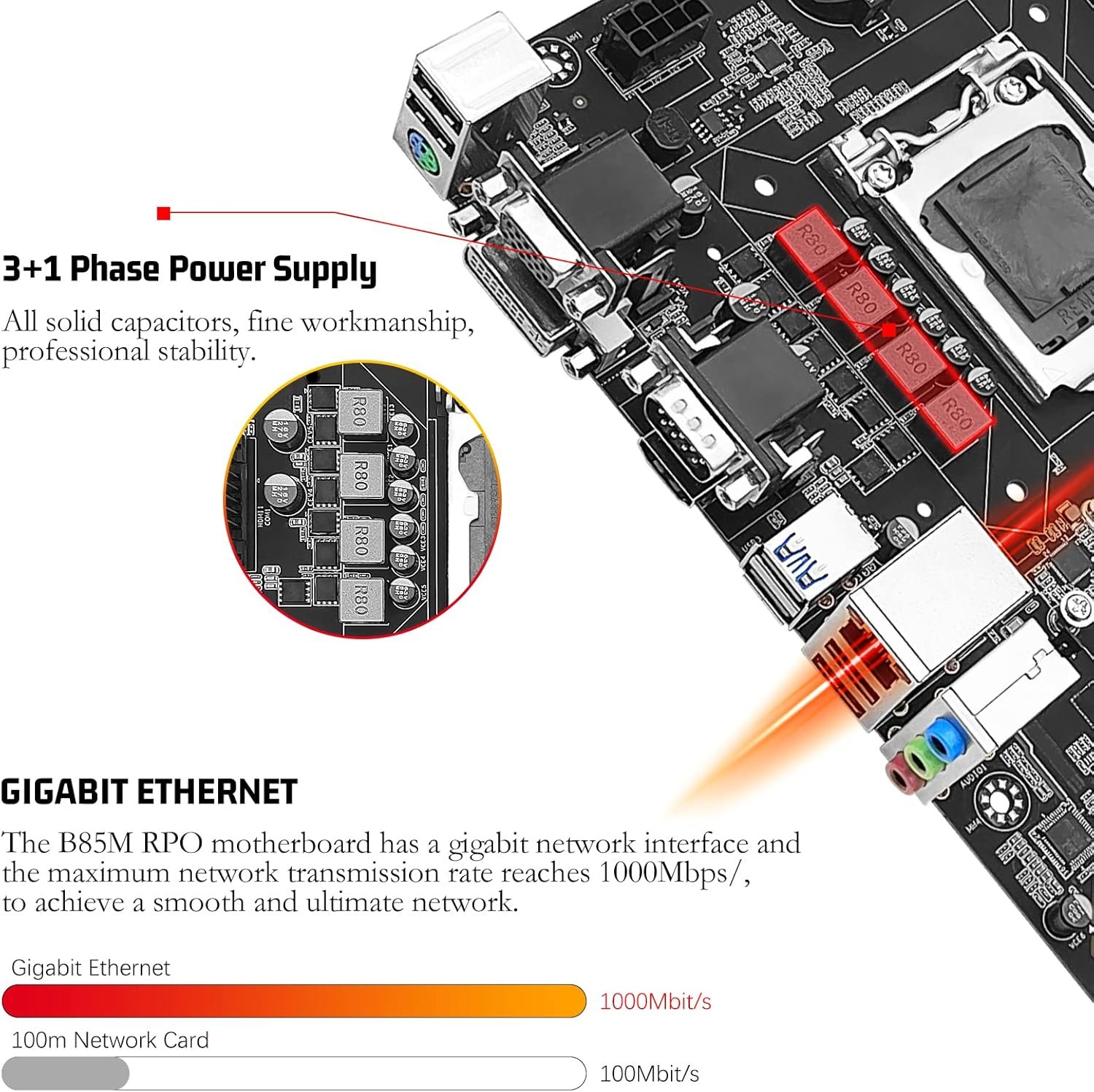

Stable Power Supply: 4-phase power supply, all-solid-state capacitor design, fine workmanship, professional stability. And the LGA 1150 M-ATX placa madre is equipped with 24+8 pin power interface (at least 500w brand power supply)
High Performance Motherboard: The Intel motherboard is equipped with B85 chipset. And the 8-layer PCB design effectively extends its service life. Heat dissipation armor protection, with strong heat dissipation, to ensure stable bus communication
Package Includes: 1*B85M PRO motherboard, 1*SATA cable, 1*I/0 shield. IMPORTANT: The package does not contain a user manual. If you need the manual, please download it from the product description page or ask us on Amazon to get it
Warm Tips: After the installation of the motherboard, if no display, no boot, no screen, no network card, no sound card, etc., it is recommended to restore factory settings, reset the CMOS, or use an eraser to wipe the metal fingers on the memory, CPU and graphics card. It is recommend driver download: Driver Talent. or use Win 10 system, it can help you solve all the driver problems
